OriPure PHL5 Alnico 5 Humbucker Neck Pickup - 7.2K

$47.00

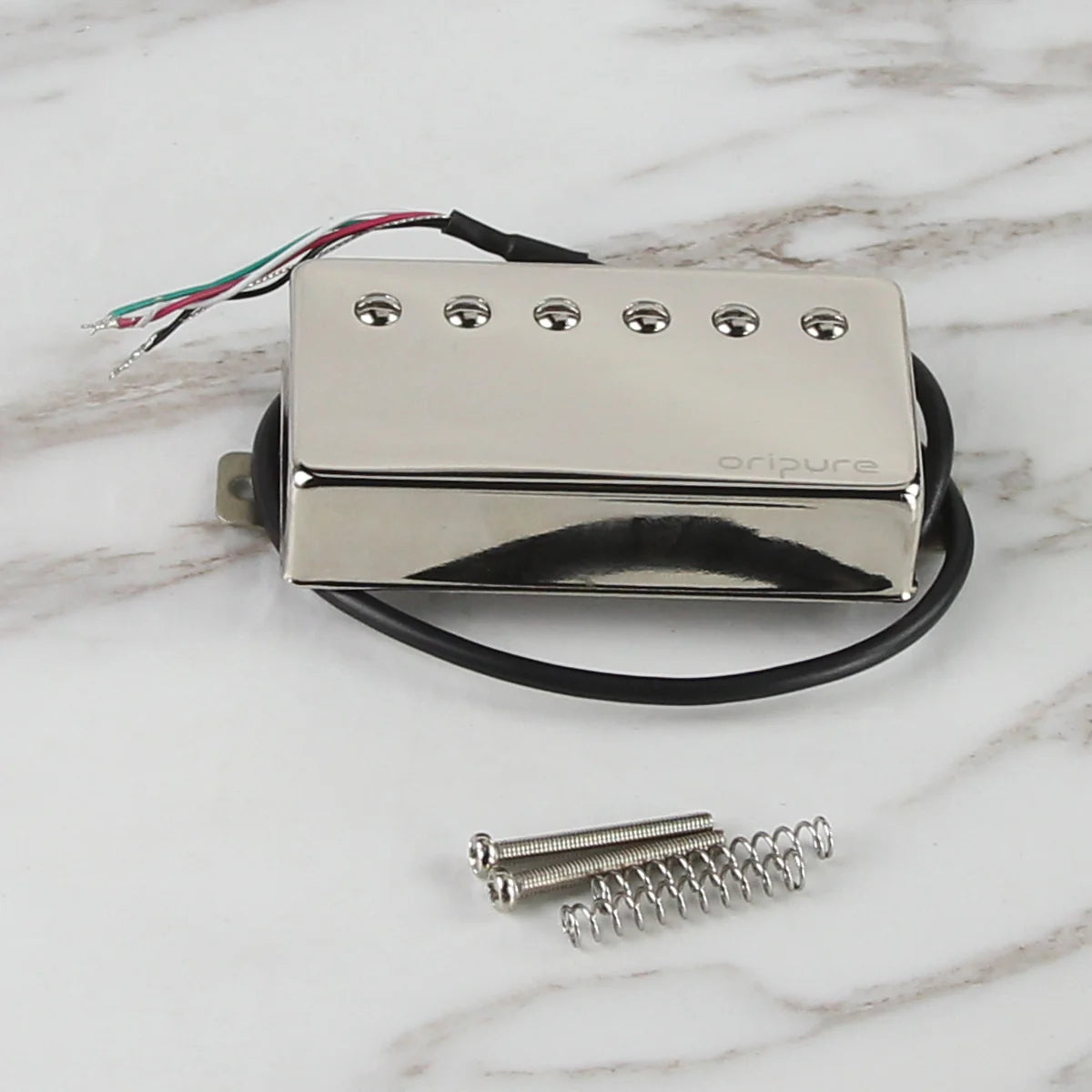

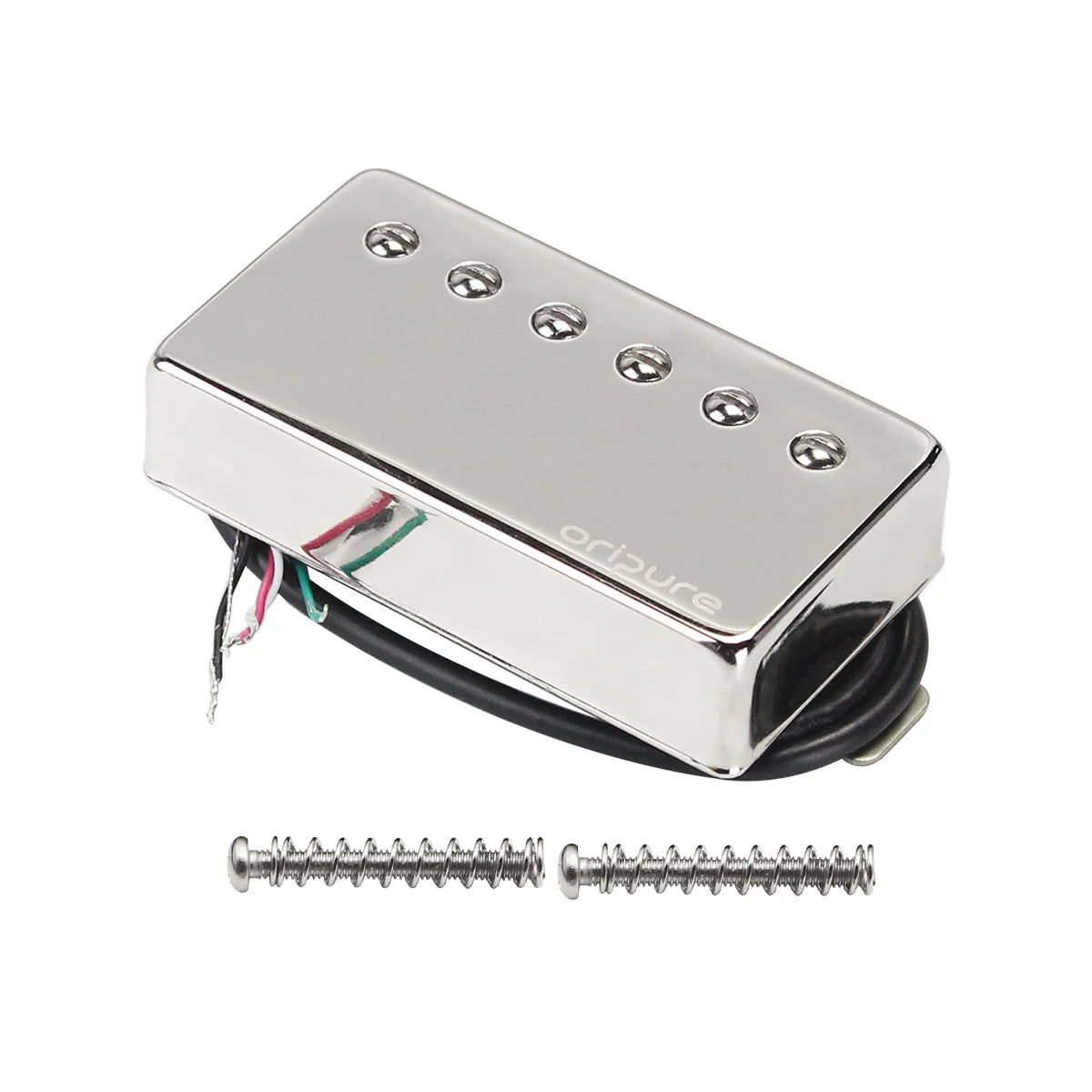

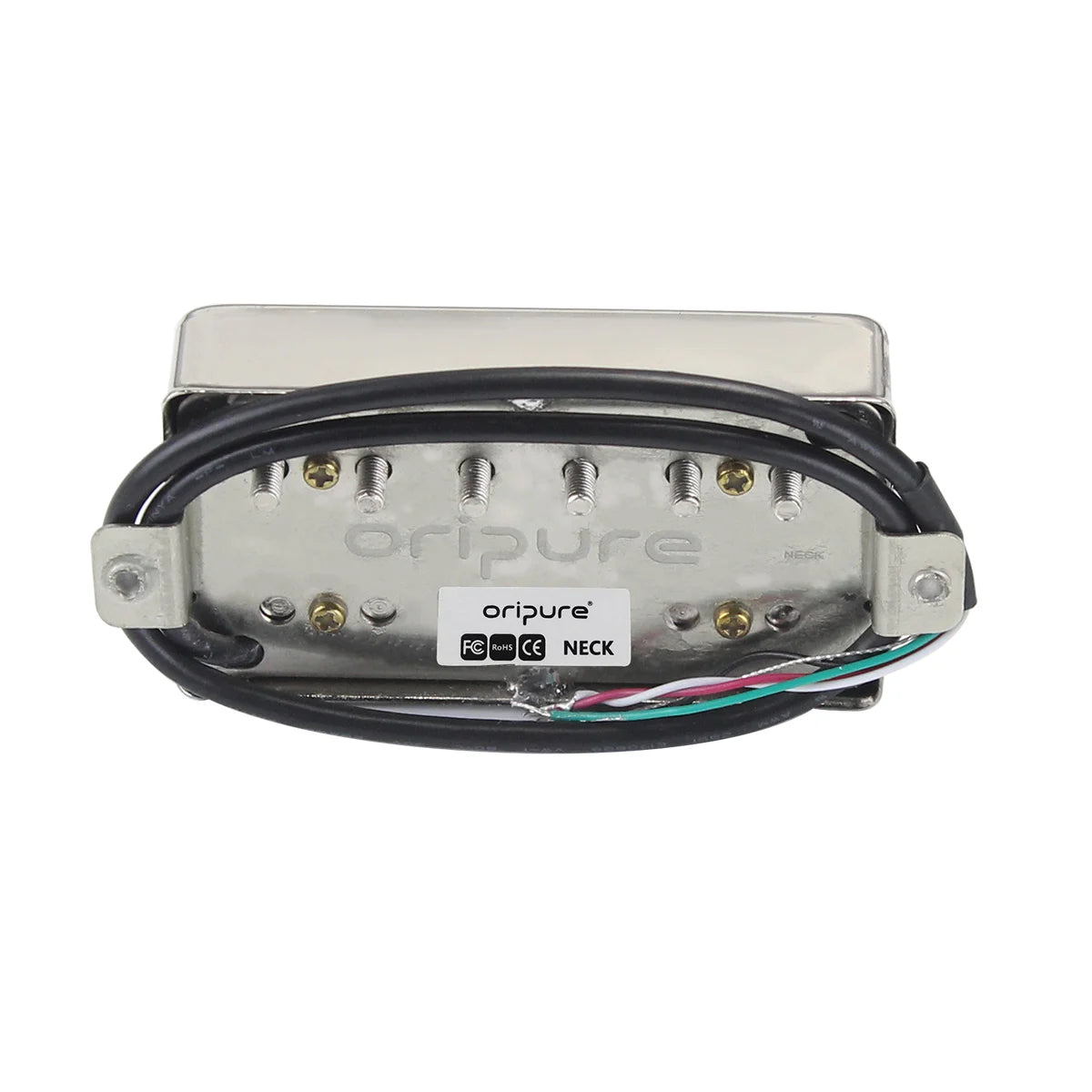

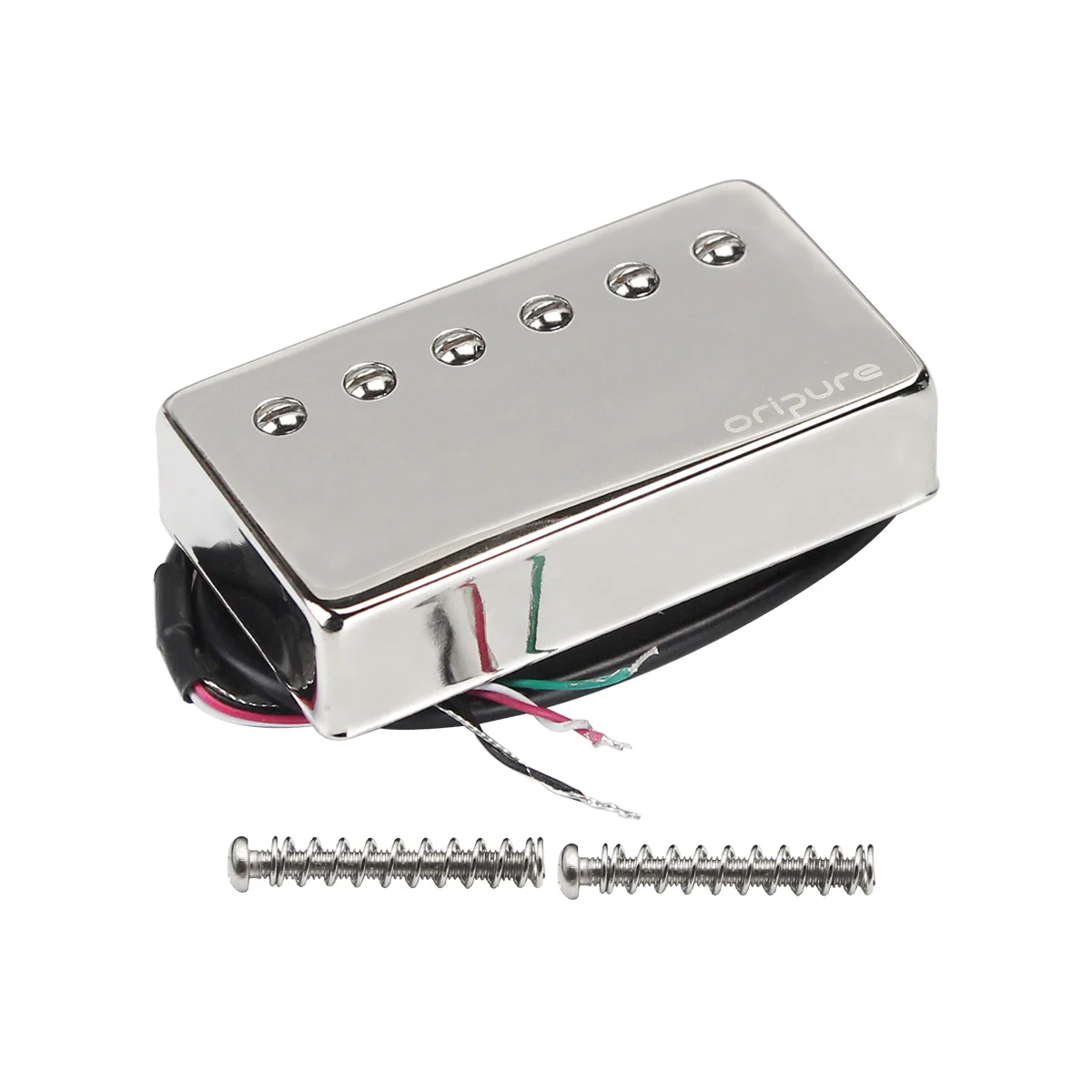

OriPure PHL5 Humbucker Guitar Pickup Alnico 5 Neck Pickup Chrome for LP

Specifications:

��Brand:OriPure .
��Model: PHL5.
��Double Coil Humbucker Guitar Pickup Fit For LP Style Guitar Parts Upgrade or Replace.
��Tones Features : Delivers bright, delicate, transparent, warm, fat sound. vintage jazz, blues, rock tone.
��Magnet: Alnico 5.
��Position: Neck / Bridge for your choose .
��Pole Pieces:Single Row Adjustable Screws Pole Pieces.

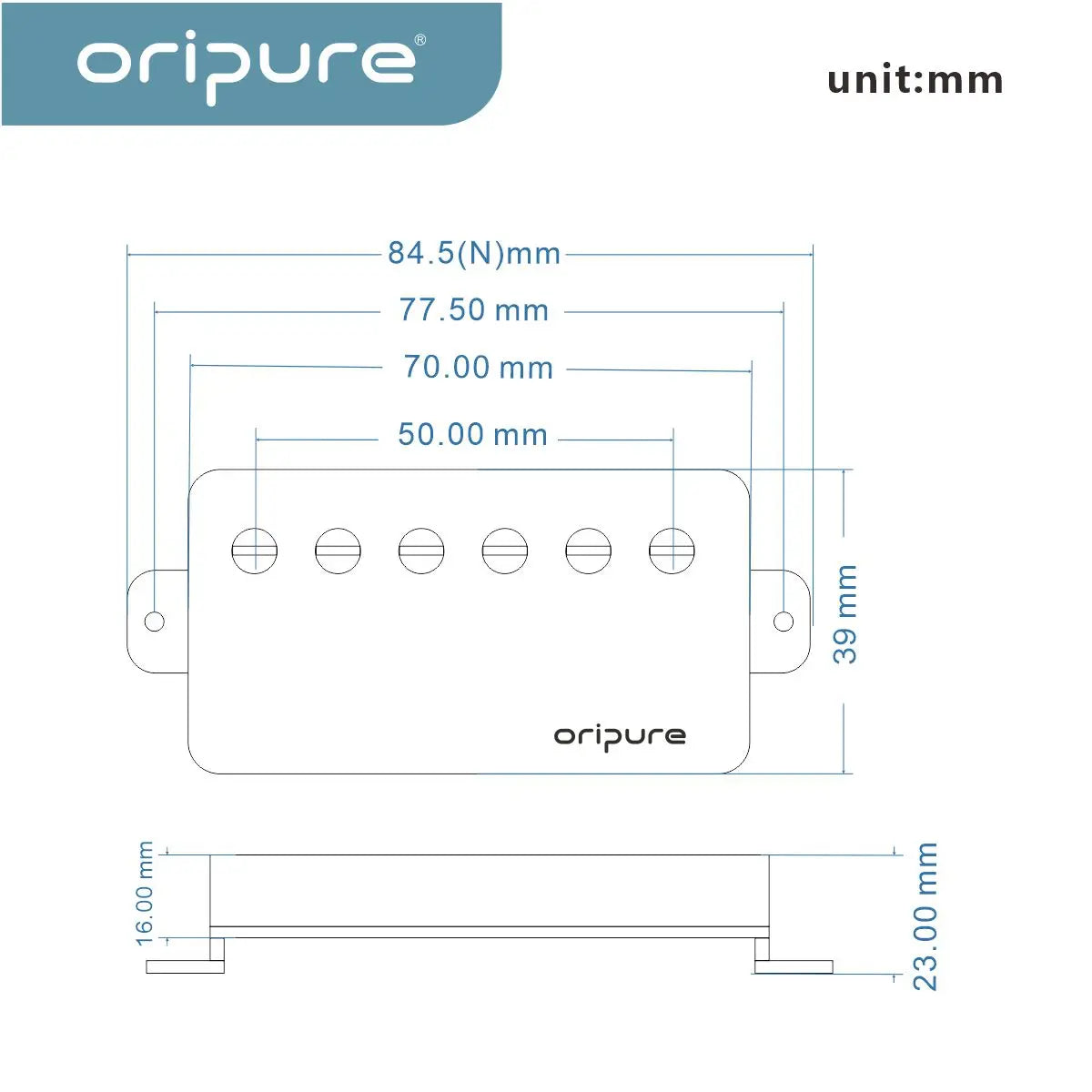

��Pole Spacing: 50mm(Neck), 52mm(Bridge).
��Neck Pickup：Resistance 7.2K, Inductance: 3.6H.
��Bridge Pickup: Resistance 1: 8.4K , Inductance:4.6H; Resistance 2: 13-14K ,Inductance:8H.
��Baseplate: Copper-nickel alloy.
��Cover: Chrome Metal .
��Output line: 4-Conductors PVC Cable to Facilitate Complex Pickup Switching Setups.
��Color :Chrome Color .
��Wax-sealed to Eliminate Any Unwanted Feedback and Noise.
��Each Pickup Includes Screws and Springs.

Note:

All parameters for reference, the actual may be a bit deviation. The actual effect of tone will be a little different from different guitars or related equipment.
The DC Resistance we marked will change due to the difference in ambient temperature, and the range of change will reach 500Ω. In case of extreme temperature, the range of change will be greater.

Packing List:

��1 x Guitar Pickup
��2 x Screws
��2 x Springs
